It’s a warm day, you just hopped into your car, started the egine, and cranked the air conditioner—only to hear the quiet hum and feel the warm air. There are hardly any frustrations as annoying as that, especially on those hot summer days. But if your car’s AC isn’t blowing cold air, don’t worry. There are many different issues with air conditioning systems that can be diagnosed and repaired at home without a mechanic.
Why Your Car AC Isn’t Cooling
Car air conditioning systems are more complex than they seem. They rely on several components working together to cool the cabin. When one of these parts fails or isn’t performing properly, the AC will blow warm or mildly cool air instead of cold.
Here are the most common reasons why your AC may not be cooling:
- Low refrigerant (commonly R-134a or R-1234yf)
- Faulty compressor
- Clogged cabin air filter
- AC system leak
- Bad AC pressure switch
- Electrical issues or blown fuse
- AC condenser or fan failure
Let’s go through these problems and the DIY soltions one by one.
Safety First
Before working on any car system, always prioritize safety:
- Park the car on a flat surface with the engine off.
- Wear gloves and safety goggles.
- Avoid touching hot engine components.
- Be cautious when handling refrigerants—they are under pressure and can cause frostbite or eye injury if mishandled.

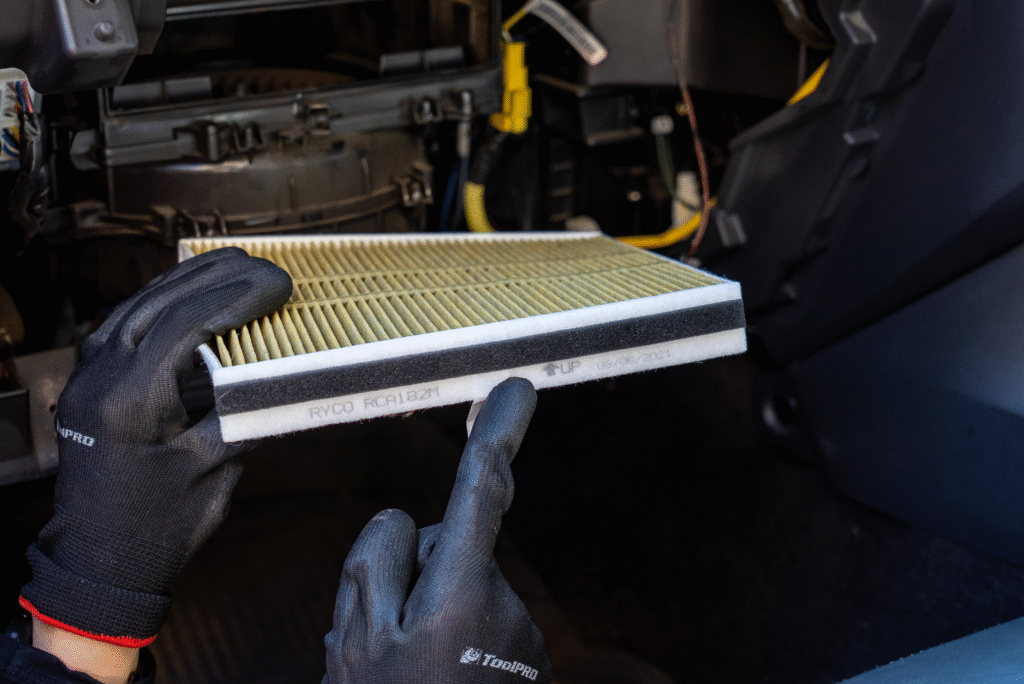

Step 1: Check Cabin Air Filter
A clogged or dirty cabin air filter can restrict airflow and reduce cooling efficiency.
How to Inspect and Replace It:
- Locate the cabin air filter—usually behind the glove box or under the dashboard.
- Remove the filter and check for dirt, dust, or debris.
- If it’s dark, clogged, or hasn’t been chnged in over a year, replace it. Most filters cost between $10–$20 and are available at auto parts stores.
A fresh filter can instantly improve airflow and cooling.
Step 2: Check the AC Settings and Fuses
Verify the climate control settings in the car. Set the AC to maximum cool and to maximum fan speed. Ensure the AC button is on and not just the fan.
Check the fuses in the fuse box located either under the hood or in the cabin. Locate the fuse for the AC and check if it is blown. If so, replace with the same amperage fuse.

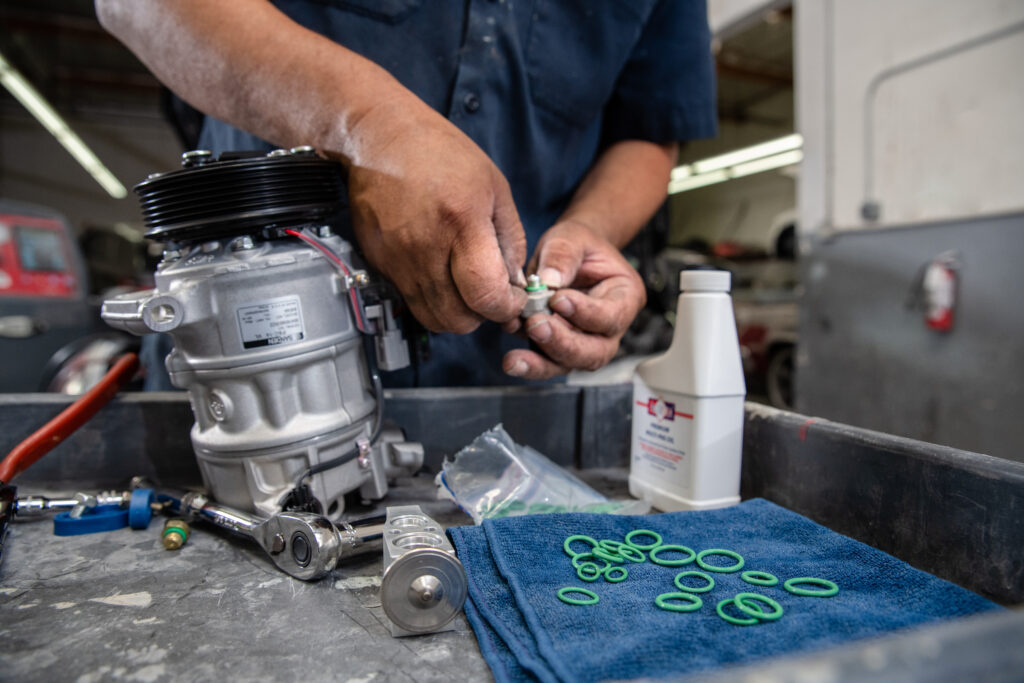

Step 3: Inspect the AC Compressor
The AC compressor is responsible for compressing the refrigerant and circulating it through the system. If it isn’t working, your AC won’t cool.
How to Inspect:
- Start the engine and turn on the AC to max cold.
- Open the hood and locate the compressor (it’s usually a round component connected by a belt).
- Check if the compressor clutch is engaging—listen for a clicking sound and see if it’s spinning.
If the clutch isn’t engaging:
- It could be due to low refrigerant pressure.
- There may be an electrical issue (fuse, relay, or clutch failure).
If it’s not engaging at all, skip to the refrigerant section or consult a professional.
Step 4: Recharge the AC System with Refrigerant
Low refrigerant is one of the biggest reasons why your AC blows warm air. Refrigerant normally leaks out of your system over time. Luckily, you can recharge it yourself at home using a recharge kit.
What You Need:
- R-134a or R-1234yf recharge can (check your vehicle label)
- Recharge hose with pressure gauge
- Safety glasses and gloves
How to Recharge:
- Start the car and turn the AC to the coldest setting.
- Open the hood and locate the low-pressure port—usually marked with an “L” and a plastic cap.
- Attach the recharge hose to the port.
- Shake the refrigerant can and follow the instructions on the kit.
- Watch the pressure gauge. Ideal pressure is usually between 25 to 45 psi on the low side.
- Stop filling once you reach the proper level—don’t overcharge.
- Disconnect the hose and replace the cap.
Let the AC run for 5–10 minutes and check if cold air is coming through the vents. If yes, the recharge likely fixed the issue.
Step 5: Look for AC System Leaks
If your refrigerant was very low or ran out quickly after refilling, there might be a leak.
How to Detect Leaks:
- Use a UV dye kit that’s added to the refrigerant. After circulating, shine a UV light on AC hoses and components to find glowing spots (leaks).
- Alternatively, use a leak detector spray to spot bubbles at leaky connections.
Common leak points include:
- Hose connections
- Schrader valves
- AC condenser
- Evaporator coil
Small leaks may be fixed with a can of refrigerant with sealant, but larger leaks or those near the evaporator may need professional service.
Step 6: Inspect the Condenser and Cooling Fan
The AC condenser is located in front of the radiator and helps dissipate heat. If it’s blocked, dirty, or damaged, cooling performance drops.
How to Clean and Inspect:
- Open the hood and check for leaves, bugs, or dirt on the condenser.
- Use a soft brush or gentle hose to clean it (avoid high-pressure water).

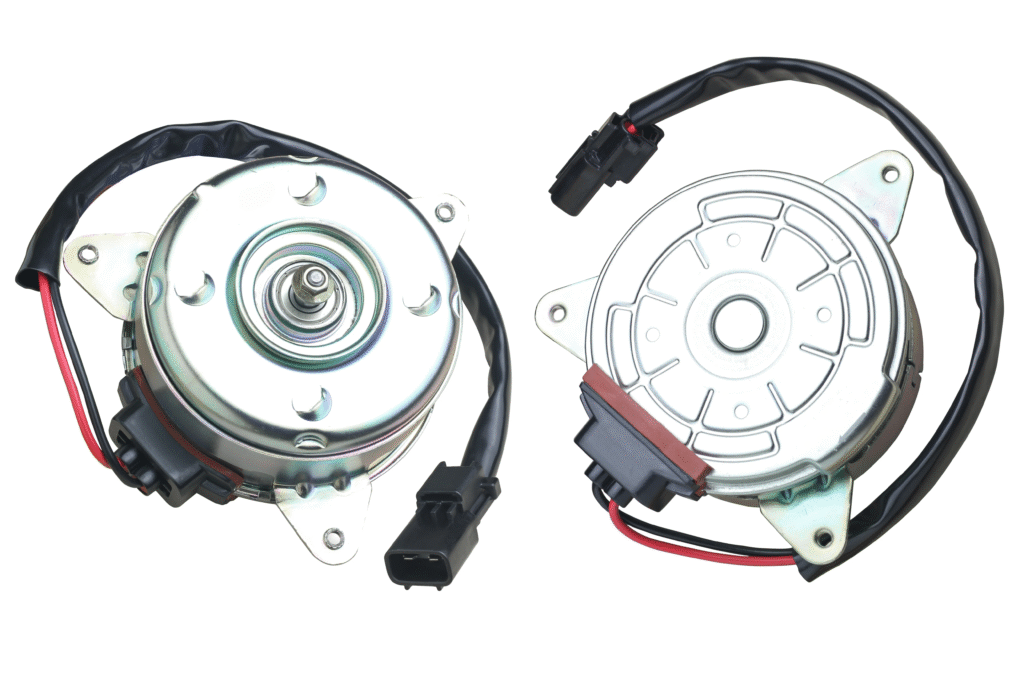

- Make sure the cooling fan is working when the AC is on. If not, check for a faulty fan motor or relay.
Step 7:Check for Electrical Problems
Your AC system relies on sensors, relays, and switches. If any part of the circuit fails, cooling may stop.
Common issues:
- Blown AC clutch relay
- Faulty pressure switch
- Broken temperature sensor
- Loose or corroded wiring

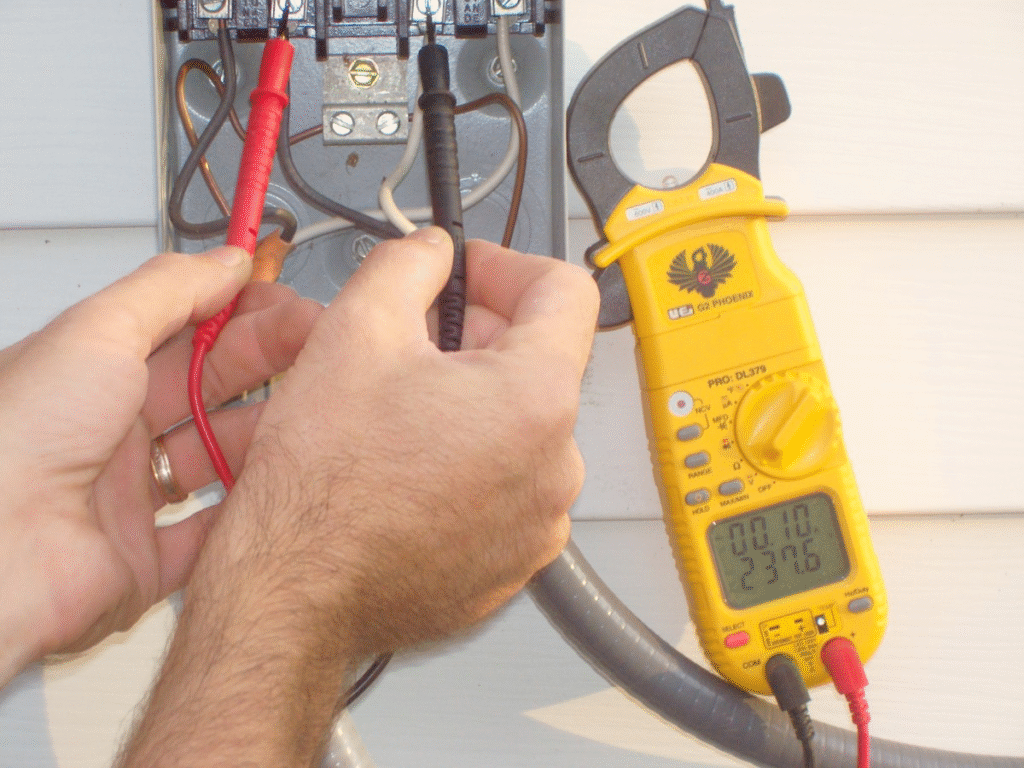

If you have a multimeter, you can test voltage and continuity across fuses and switches. However, electrical diagnosis is more advanced and may require professional help.
Step 8: Consider a Reset or System Relearn
Some modern cars have automatic climate systems that need a reset after battery disconnection or component replacement.
Try this:
- Turn the key to “On” (not engine start).
- Set the AC to coldest, fan on high.
- Let the car idle for 3–5 minutes.
- Some vehicles have a button combination or scan tool method for AC reset—check your owner’s manual.
When to Call a Mechanic
While many AC problems can be fixed at home, you should seek professional help if:
- Your refrigerant leaks keep coming back
- You hear loud noises when AC is on
- The compressor is locked or non-functional
- You smell mold or gas-like odor from vents
- The AC system has never been serviced and is over 5 years old

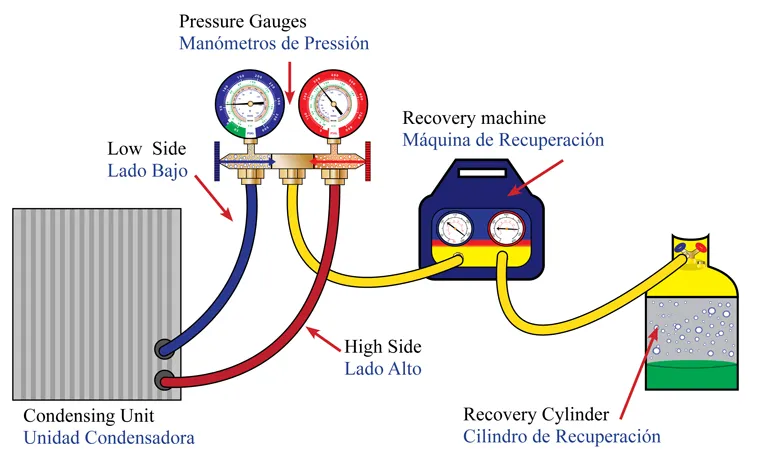

Auto shops have specialized tools like manifold gauges, vacuum pumps, and refrigerant recovery systems that help diagnose complex problems.
Final Tips to Keep Your AC Working
Once your AC is back to blowing cold air, keep it running efficiently with these simple habits:
- Run the AC for a few minutes once a week, even in winter
- Replace the cabin air filter every 12,000–15,000 miles
- Keep condenser clean and debris-free
- Don’t run the AC on max settings for long periods
- Recharge the system every few years, even if it’s still cool
A little maintenance goes a long way toward keeping your car comfortable year-round.
Conclusion
It may seem like fixing a car AC that doesn’t blow cold air is complicated, but many of the common dilemmas can be fixed right in your driveway. It could be something as simple as replacing a dirty air filter or adding low refrigerant. With this guide, you now have the items and a general understanding to troubleshoot your AC problem from home.
Now that you are better equipped to handle the heat, you really are better equipped to handle the heat—literally. And you did it all without a mechanic or expensive repair bill
