Experiencing a quiet vehicle while driving can be one of the most aggravating expriences for someone used to listening to music, podcasts, or just listening to the news while driving to and from work. When your car radio won’t turn on, not only are you losing a sense of comfort, but it could also indicate some potential deeper electrical issues. However, car radio problems aren’t always serious or costly. Many problems are manageable with a simple knowledge of your vehicle’s electrical system and some good ol’ DIY!
In this guide, you will learn how to diagnose and fix a car rdio that won’t turn on even if you are not a certified mechanic. We will guide you through the whole process from checking the fuse to checking wires to checking ground connections, to get your radio back in wrking order.
Start with the Basics: Is It Really Dead?
Before diving into complex diagnostics, start by confirming that the radio is truly not turning on. Ask yourself a few key qustions:
Do the display and buttons light up at all?
Does it make any sound when you turn the ignition key?
Have any other electrical components stopped working at the same time?
Was there a recent battery replacement or jump start?
If the radio is completely unresponsive—no lights, no sound, no display—it’s time to begin with a step-by-step inspection.

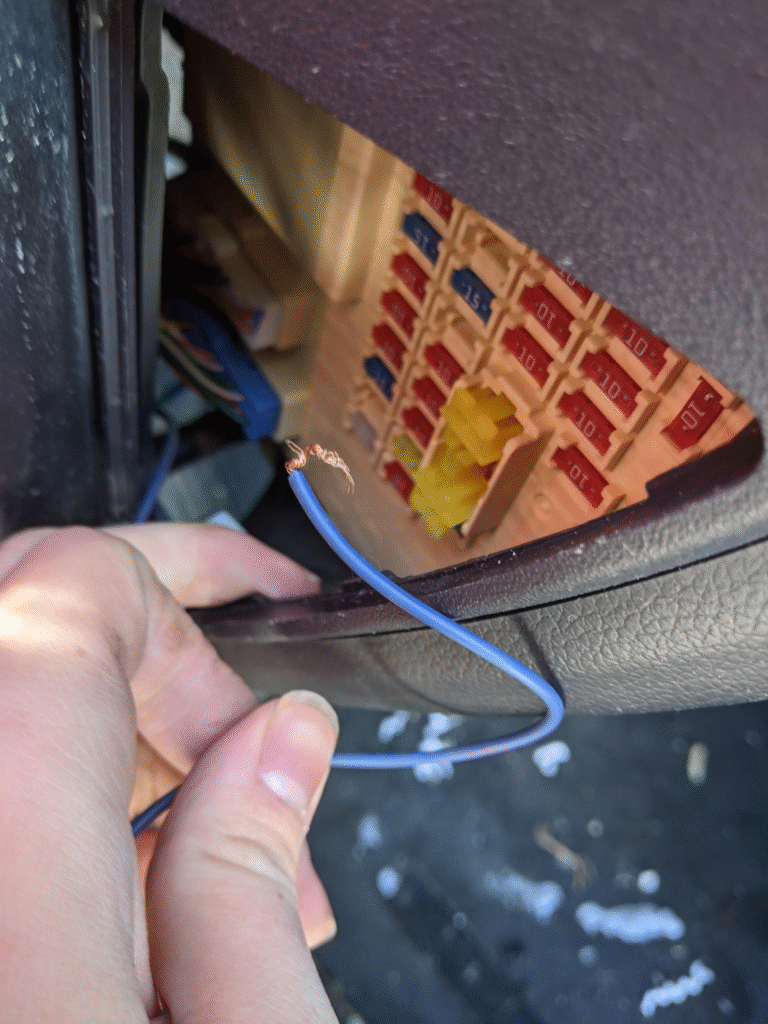

Step 1: Check the Car Radio Fuse
One of the most prevalent reasons a car radio won’t power on is a blown fuse. Every car has a fuse box, sometimes two—one inside the car and another under the hood. These fuses protect electrical devices, including your radio, from short circuits and overloading.
Here is how to check your fuse:
Find and access your fuse box: Using your car owner’s manual, identify exact location of the fuse box.
Identify the radio fuse: It may be labeled “AUDIO”, “RADIO” or “INFO.”
Use a fuse puller or small pliers to pull out the fuse.
Hold the fuse up to the light and check to see if the metal strip in the fuse is broken or burned.
If the fuse is blown, replace it with a fuse of the same amperage (usually marked on the top of the fuse). Do not try to replace it with a higher amp fuse or you risk causing electrical damage.

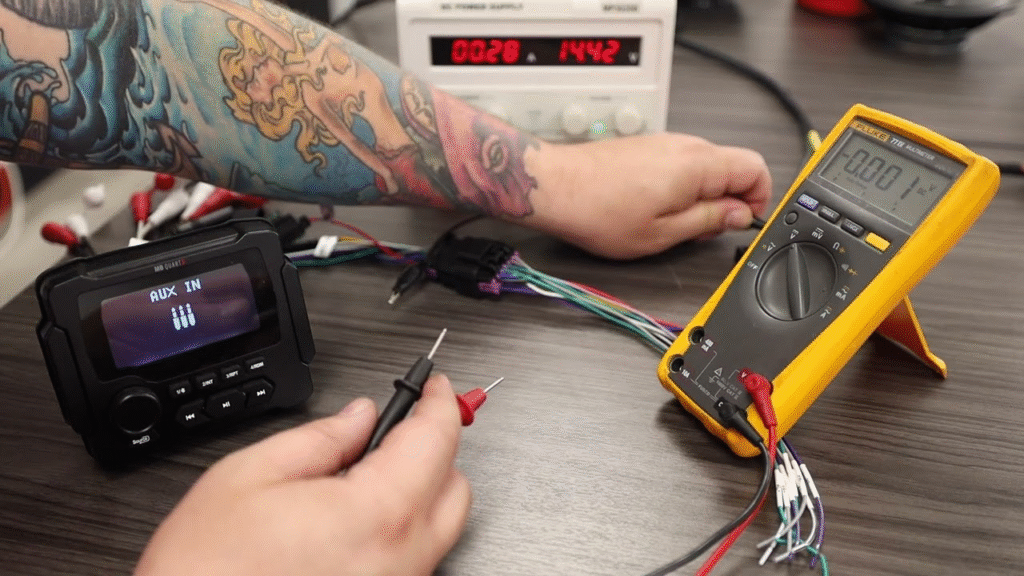

Step 2: Test the Power Supply to the Radio
If the fuse is intact but the radio still doesn’t respond, the issue might be with the power supply. Your radio typically receives power from two sources:
A constant 12V supply that retains memory
A switched 12V supply that powers the unit when the ignition is turned on
To test this, you’ll need a multimeter or a test light.
Remove the car stereo from the dashboard using a trim removal tool.
Identify the power wires using your car’s wiring diagram or stereo wire labels (often red for switched power, yellow for constant power).
With the ignition on, check both wires for voltage using the multimeter.
If no power is detected, the issue lies with the vehicle’s wiring, ignition switch, or another fuse you may have missed.
If power is present but the radio still doesn’t turn on, it’s likely a problem with the stereo unit itself.

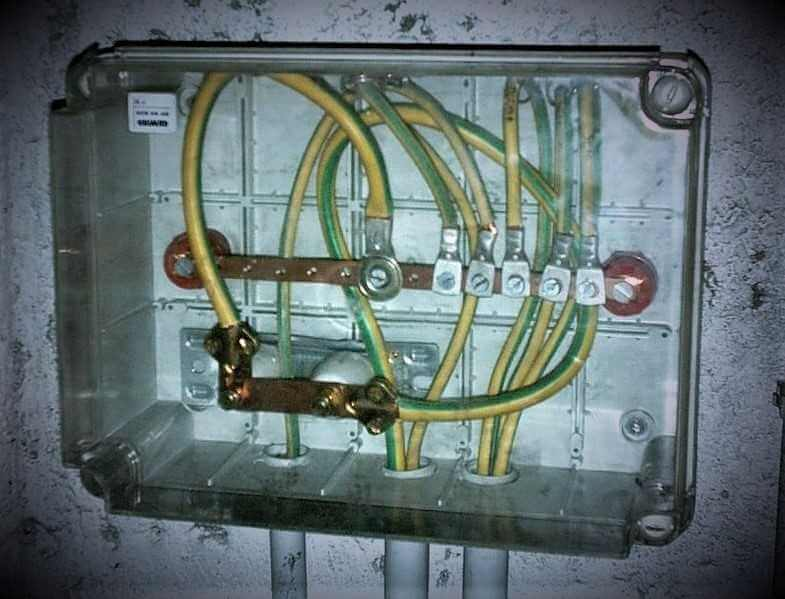

Step 3: Inspect the Ground Connection
Like all electrical devices, your car radio has to have a ground connection to complete the circuit. A weak or broken ground connection can stop the radio from turning on even though there is power.
Find the ground wire (which is usually black) in the stereo wiring harness. Use the multimeter to check the resistance between the ground wire and a bare metal part of the car’s chassis. If it shows high resistance or has no continuity the ground could be loose, corroded, or disconnected.
To solve the ground problem, find the mounting point and trace the ground wire back to where it connects to the mounting point. Clean the metal surface it connects to and make sure it is tight on bare metal.
Step 4: Check for Factory Theft Protection Mode
Some factory radios have an anti-theft feature which disables the radio when the battery is disconnected or replaced. In these cases, the radio will not turn on until a specific unlock code is entered.
Check inside your glove compartment, owner’s manual or other documentation for the radio unlock code.
If you cannot find it, reach out to the dealership and provide them your VIN number as they are usually able to look this code up.
Once entered the radio should work like normal.

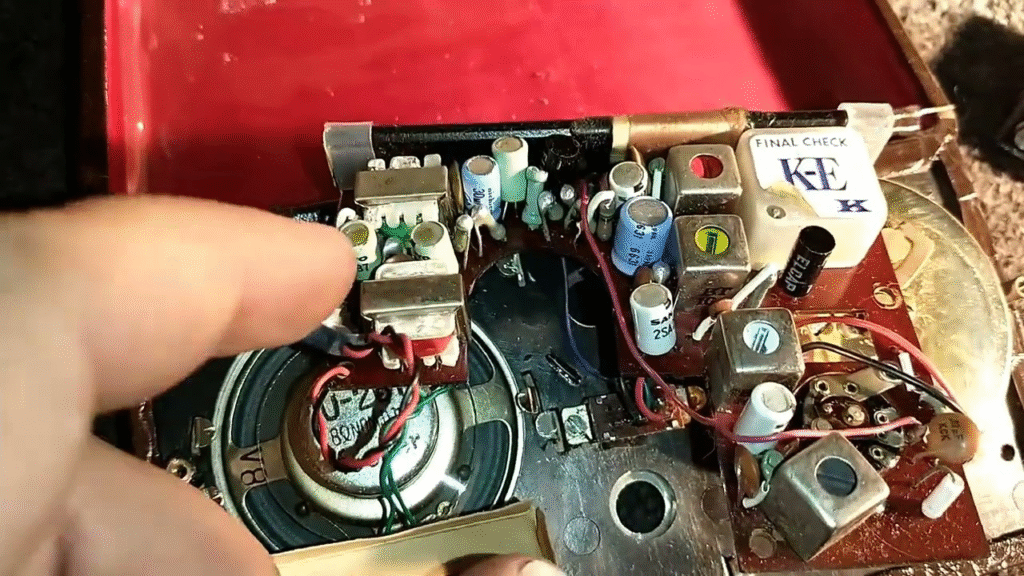

Step 5: Inspect the Radio’s Internal Circuit Board
If all external checks were acceptable – fuse is intact and power and ground are present, no theft lockout – then the fault must be in the radio itself. Faults can occur to internal radio circuits caused by moisture, too much heat, or power surges. You have two choices at this point:
Open the radio unit and visually inspect the circuit board for burnt parts, corrosion or broken soldered connections.
Replace the head unit with an aftermarket stereo if you have verified internal damage.
Opening and repairing an automobile stereo circuit board is generally not recommended unless you are proficient in electronics and soldering.

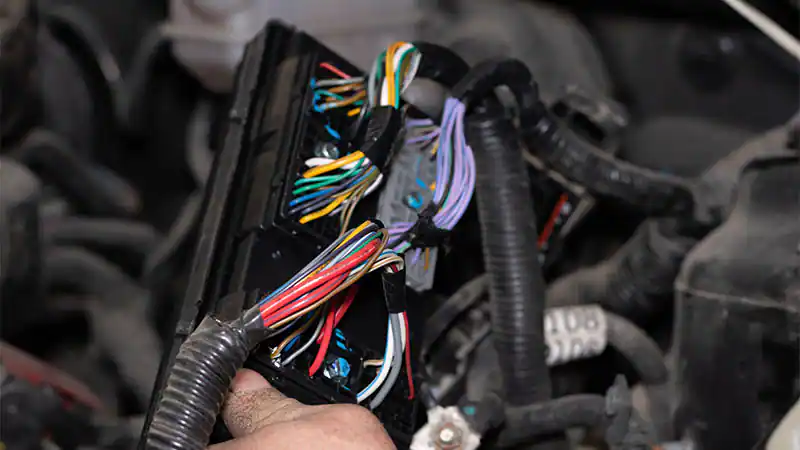

Step 6: Check Wiring Harness and Connectors
Road vibrations or dashboard repair can loosen wiring connectors. Plugs can become partially disconnected, or the wires can be corroded over time.
Unplug the wiring harness for the radio completely.
Check the pins and sockets for corrosion, bent contacts, and melted plastic.
Clean any dirty connectors using an electrical contact cleaner.
Plug everything back in firmly and retest.
Inspect for evidence of aftermarket wiring splices or adapters. If the radio has been previously replaced, poorly done wiring may be the problem.

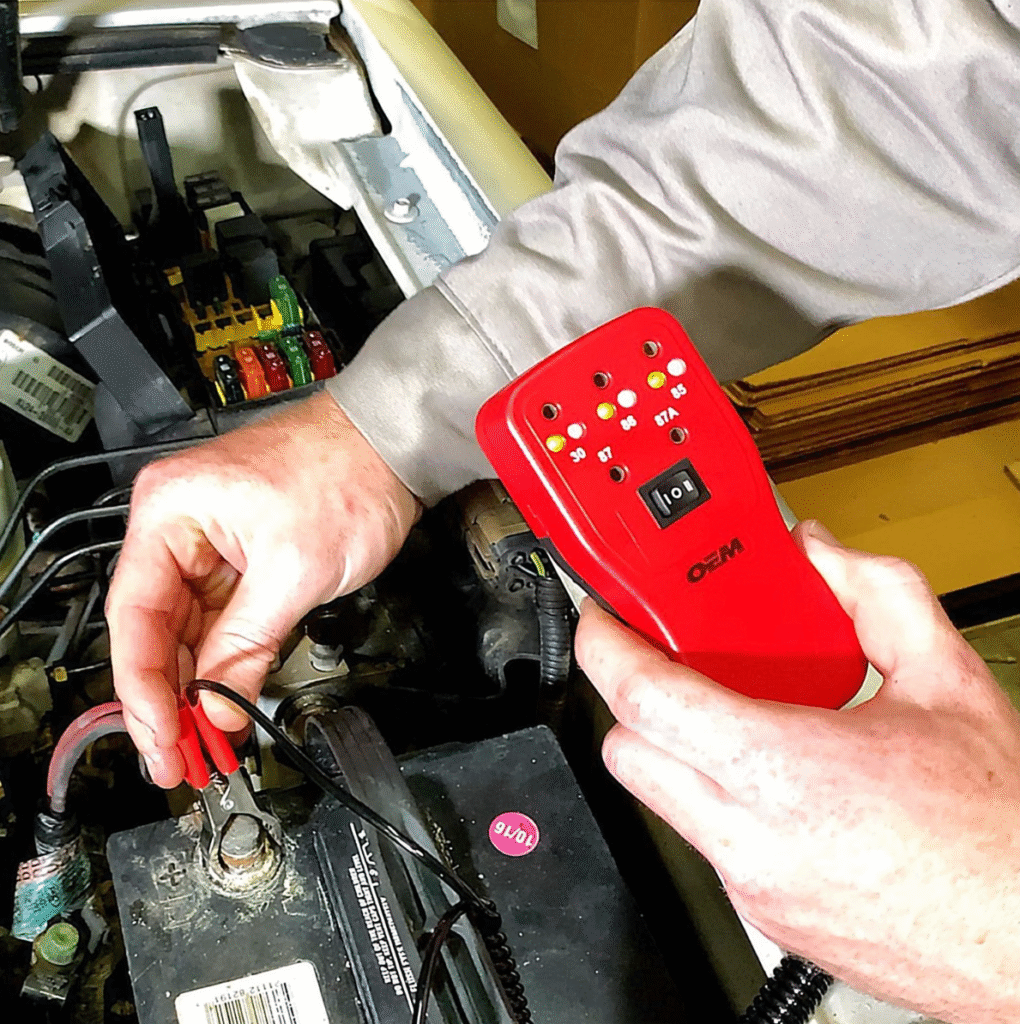

Step 7: Test the Ignition Switch or Accessory Relay
If your radio only powers on while the ignition is in “ACC” or “ON”, you may have a defective ignition switch or accessory relay.
A worn switch may not supply power to the radio circuit even though you can normally start the vehicle. This is more common in older vehicles.
You can connect your radio directly to the battery (fused of course) to bypass the ignition feed to verify whether it powers up properly. If it does, then you may have to repair or replace the ignition switch.

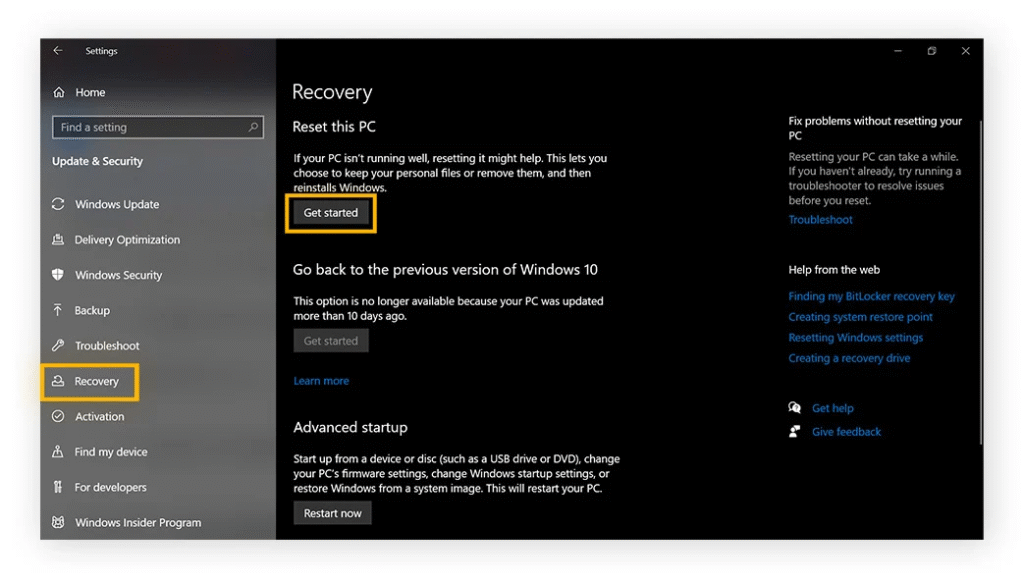

Step 8: Consider a Factory Reset or Software Update
Contemporary infotainment systems may have dysfunction perceptions because of software. A factory reset or a firmware update will sometimes bring the radio back to life.
Refer to your car’s manual to find out how to perform a factory reset.
In addition, some cars may require a specific combination of buttons on the radio or some diagnostic tools to perform a reset.
If applicable, go to your dealership for a software flash or update.
This step is mostly relevant for newer cars with modern multimedia systems, which have an emphasis on touchscreen input.
When to Call a Professional
If you’ve tested the fuse, ensured power and ground, examined connectors, and ruled out any anti-theft lockout and the radio still won’t turn on, you have the option of going to a car audio technician. They will be able to diagnose even deeper electrical issues quickly with equipment like oscilloscopes and load testers.
In some cases, especially with high-end or complicated infotainment systems, just to replace the head unit and or updating vehicle software can require dealer level access.
Final Thoughts
Not all broken car radios mean taking it to the dealer or breaking the bank. With a little patience, most power and connection issues can be resolved in your garage. First, look at the fuse, then test for power and ground, also check on the connectors, and then work your way back. Going from a blown fuse or an issue with your ground, a majority of repairs are only a few tools and minutes away.
